flapor: insulation for the top floor ceiling

Depending on the design of the building, the amount of heat lost through the top floor ceiling of detached family homes can be up to 30%. With flapor thermal insulation boards EPS-W20 – in conjunction with a 6cm thick layer of screed – it is possible to create any thickness of insulation you want without any restriction on subsequent changes of use. flapor therefore also keeps the heating costs right up top right down low.

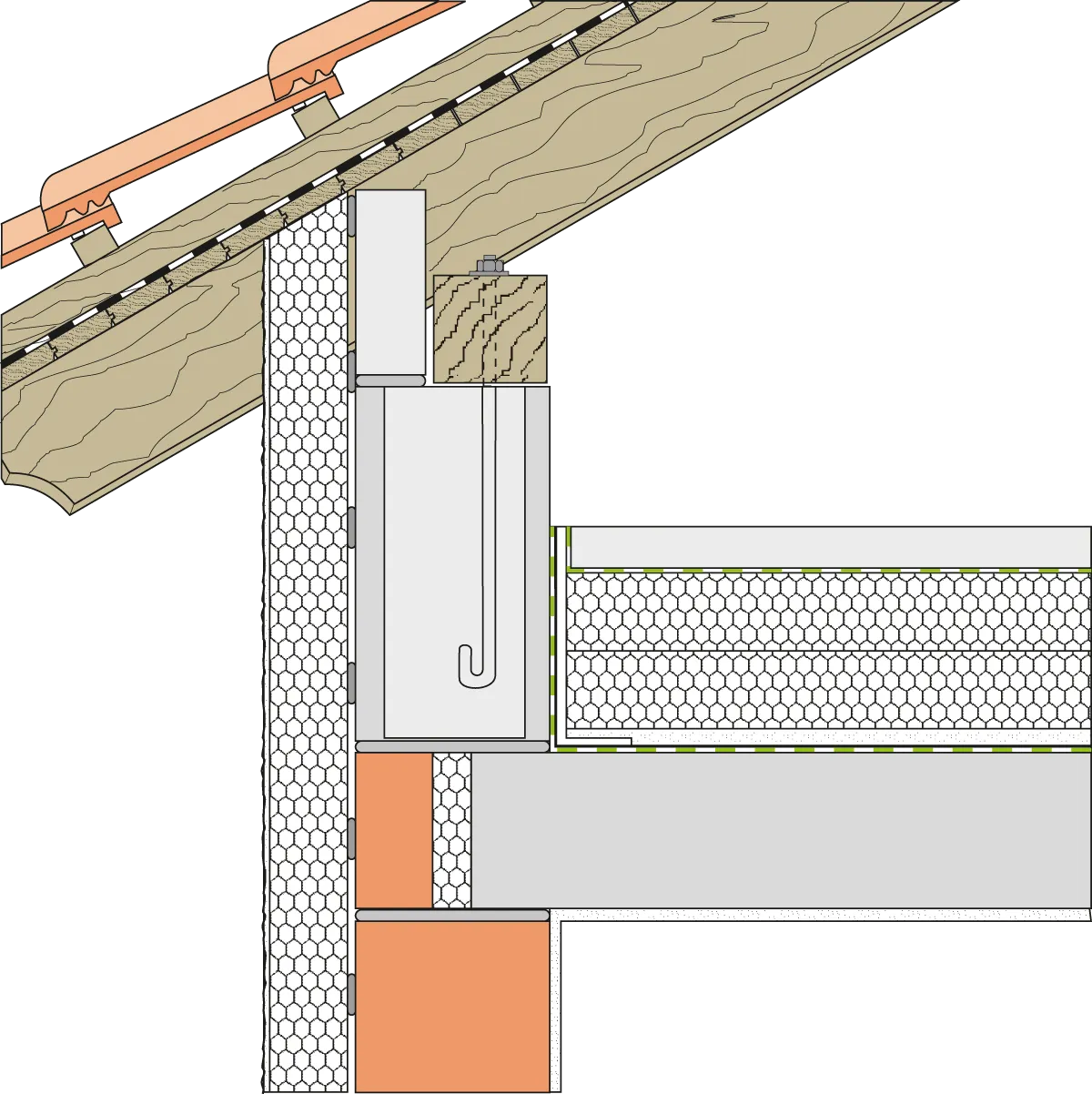

Thermal insulation for top floor ceiling.

flapor thermal insulation boards EPS-W20, two-layer

screed or fire-resistant board

PE film (for screed)

vapor barrier

flapor thermal insulation boards EPS-W20, two-layer

Processing recommendation

(Source: GPH)

Uninsulated ceilings and floors are responsible for losses of large amounts of heat and the unpleasant feeling that some rooms never get properly warm. The thermal insulation board flaporplus EPS-W20 has been developed for thermal insulation with loading and provides optimum insulation for floors and ceilings from the ground or unheated spaces. For example, it protects utility rooms or hobby basements from unnecessary heat losses. It should be laid in two layers with offset joints. A vapor barrier is recommended, but not absolutely essential.
